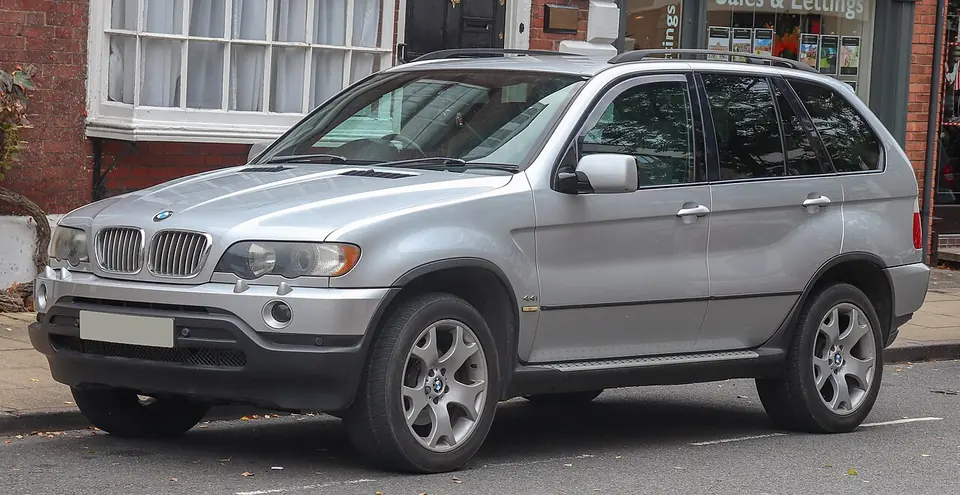

BMW E53 X5, final 2006 models buyer's guide

Models and engines by year

US-market models. Chassis codes: E53. Not sure which one you have? The VIN check decodes year, model and engine.

Model-year changes

US model years unless noted. "LCI" (Life Cycle Impulse) is BMW's name for a mid-cycle facelift.

Known problems and when they show up

Mileages are what the cited shops, specialists and owner forums report. They are typical ranges, not predictions for any one car.

M54 engine

X5 3.0i (2006)

N62 engine

X5 4.4i (2006), X5 4.8is (2006)

Known E53 issues beyond the engine

3.0i: CCV, VANOS, valve cover gasket. A worn CCV valve makes the engine burn oil (rough cold start, blue smoke, yellow sludge under the filler cap). A failing VANOS sounds like marbles rattling in a can. The valve cover gasket goes at around 100,000 miles.⁶

V8: coolant leak from the valley. The coolant passage gasket between the cylinder banks fails with heat. The job is time-consuming, so shop labor is high.⁶

Transmission after 100,000 miles. BMWBlog says E53 transmissions have problems after 100,000 miles. Check whether the fluid was ever serviced.⁶

Electrical gremlins. All-wheel drive, air suspension, sensors and window regulators. BMWBlog calls the E53 about the most problematic BMW of its era.⁶

Transfer case actuator gear. Shared with the E83: the plastic actuator gear typically fails at 90,000–120,000 miles and lights up the brake, ABS and 4x4 warnings.⁷

Warranty extensions and service campaigns 3

Warranty extensions (3)

• SIB 65 02 22 Air bags warranty extension Air bags warranty extension on BMW G05/G06/G07/F16 and other models (2006–2023); BMW extended the warranty on this part for eligible cars. Warranty extension · Jan 2025
• SIB 01 16 18 Airbag class-action settlement Airbag class-action settlement on BMW E46/E53/E70/E71 and other models (2006–2015); covers eligible repairs and reimbursement under the court settlement. Service bulletin · Jan 2019
• SIB 01 05 11 Fuel tank leak check warranty extension Fuel tank leak check warranty extension on BMW E70/E53 models (2006–2013); BMW extended the warranty on this part for eligible cars. Service bulletin · Jul 2016

Filed by BMW with NHTSA. Extensions usually follow the car to later owners and can reimburse earlier repairs; a BMW dealer can confirm by VIN.

NHTSA safety recalls 1

• Nov 12, 2013
  Recall 13V564: occupant classification 325I, 328I, 330I, 335I, 525I, 530I, 550I, 750I, 750LI, 760I, 760LI, X5, 2006–2007. BMW of North America LLC (BMW) is recalling certain model year 2006 325i, 325xi, 330i, 330xi sedans and 325xi sports wagons, model year 2007 328i, 328xi, 335i, 335xi sedans and 328i and 328xi sports wagons, model year 2006-2007 525i, 525xi, 530i, 530xi, 550i sedans and 530xi sports wagons, model yea

Matched from NHTSA's public recall file by model and model year. A recall may cover only some cars from a year, and it may already have been done on yours. Check by VIN →

Test drive and inspection checklist

1. Run the VIN for open recalls. Open safety recalls are free at any BMW dealer. Check on NHTSA's site or our recall page before you buy.⁸
2. Scan for stored fault codes with a BMW-capable tool. A generic OBD reader misses most BMW modules. Specialist guides recommend a BMW-level scan (ISTA or similar) to catch faults that have been cleared from the dash but still stored.^9,10
3. Start it from cold. Ask the seller not to warm the car up first. Chain rattle, VANOS rattle, lifter tick and rough idle show most clearly in the first seconds after a cold start.^9,11,12
4. Ask a BMW dealer about warranty extensions and campaigns. Several BMW warranty extensions follow the car, not the owner, and some reimburse earlier repairs. A dealer can check the VIN. The list for this chassis is below.
5. Get a pre-purchase inspection from a BMW specialist. A few hundred dollars for an independent BMW specialist is the usual advice, especially for M cars and high-mileage turbo engines.^13,9
6. Cold start and oil filler cap. Check for blue smoke and yellow sludge under the cap (CCV).⁶
7. Listen at the front of the engine. A marbles-in-a-can rattle points to VANOS.⁶
8. Plan a baseline refresh. BMWBlog suggests replacing affordable gaskets, belts, hoses and plugs and changing the oil right after purchase.⁶

Engine items to listen and look for are in the known problems section.

Service-history red flags

• Oil changes only at the long computer interval. Several guides advise changing oil more often than the onboard service indicator (CBS) suggests, especially with lots of city driving.^12,14
• Gaps in the records around known failure mileages. If the engine section below lists a job that usually comes due at the car's mileage, ask for the invoice. A missing record isn't proof it wasn't done, but it is a negotiating point.
• Tuned or "deleted" cars. Tunes, emissions deletes and removed parts complicate warranty claims and inspections and raise wear on turbo cars. Ask, and look for aftermarket intakes, downpipes and charge pipes.
• M54: ask for records of Cooling system (water pump, thermostat, expansion tank, hoses, radiator); CCV (crankcase ventilation); Valve cover gasket, oil filter housing gasket and DISA valve; Oil pump nut.
• N62: ask for records of Valve stem seals; Alternator bracket gasket; Coolant transfer pipe (valley).

Which E53 to look for

3.0i vs V8. BMWBlog says the inline-six is typically the cheaper, easier engine to repair.⁶

These are the views of the cited reviewers and specialists, not a ranking of our own.

E53 specs

A manual gearbox was offered in model years 2006 (EPA listings). Full E53 specs: every US engine, transmission and drive by year →

Coding

The coding apps' own lists show 64 settings that owners can change on the E53 with a phone and an OBD adapter, in areas such as Alarm System, Coming Home, Locking, Opening, Power Windows, Cleaning. 64 more appear only in Carly's list.

Full E53 coding list with tool, difficulty and caveats →

Ownership costs

Routine maintenance: oil service prices by engine size, published BMW Value Service prices (brakes, spark plugs) from 16 US dealers, and the E53 maintenance schedule.

By model year

Recalls and warranty extensions are counted when their published model-year range includes that year. Each one may cover only some cars, so check by VIN. Repairs counted are the ones whose engine was offered that year.

Production

Figures are copied as each source publishes them (retrieved October 18, 2026). "Sold" figures are BMW's reported sales, not production counts. Where we add numbers up, they come from one source. We leave out anything that hasn't been published.

Sources

1. BMWTuning: 5 most common M54 problems
2. BMWTuning: E46 common problems guide
3. E46Fanatics: in-depth maintenance guide
4. BMWTuning: N62 common problems
5. Wikipedia: BMW X5 (E53)
6. BMWBlog: E53 BMW X5 buyer's guide and pre-purchase inspection
7. Bimmerzeit: X3 and X5 transfer case actuator gear replacement
8. NHTSA recall lookup by VIN
9. The Stable: E92 M3 buyer's guide
10. Euro Premium Parts: E60 M5 reliability guide
11. carsales: buying a used F30 3 Series (2015–20)
12. carsales: buying a used E90 3 Series
13. Road & Track: E46 M3 buyer's guide
14. Drive-My: E60 5 Series buying guide (six-cylinder petrol)

Retrieved 2026-10-18. Bulletins and recalls come from NHTSA filings; owner prices come from the public posts linked on each job page.
